RV REVIEW

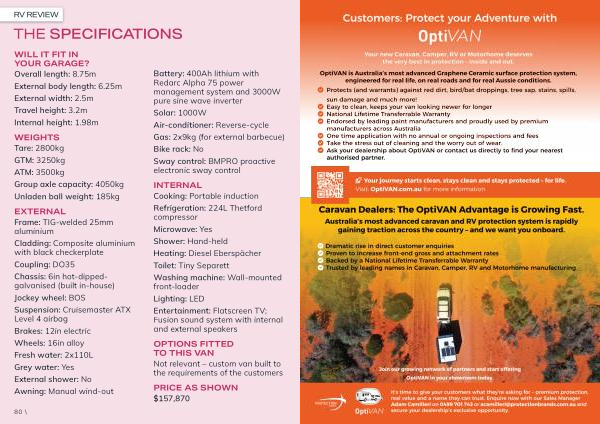

THE SPECIFICATIONS
WILL IT FIT IN YOUR GARAGE?
Overall length: 8.75m External body length: 6.25m External width: 2.5m Travel height: 3.2m Internal height: 1.98m
WEIGHTS Tare: 2800kg GTM: 3250kg ATM: 3500kg Group axle capacity: 4050kg Unladen ball weight: 185kg
EXTERNAL
Frame: TIG-welded 25mm aluminium
Cladding: Composite aluminium with black checkerplate
Coupling: DO35
Chassis: 6in hot-dippedgalvanised( built in-house)
Jockey wheel: BOS
Suspension: Cruisemaster ATX Level 4 airbag
Brakes: 12in electric Wheels: 16in alloy Fresh water: 2x110L Grey water: Yes External shower: No
Awning: Manual wind-out
Battery: 400Ah lithium with Redarc Alpha 75 power management system and 3000W pure sine wave inverter
Solar: 1000W Air-conditioner: Reverse-cycle Gas: 2x9kg( for external barbecue) Bike rack: No
Sway control: BMPRO proactive electronic sway control
INTERNAL Cooking: Portable induction
Refrigeration: 224L Thetford compressor
Microwave: Yes Shower: Hand-held Heating: Diesel Eberspächer Toilet: Tiny Separett
Washing machine: Wall-mounted front-loader
Lighting: LED
Entertainment: Flatscreen TV; Fusion sound system with internal and external speakers
OPTIONS FITTED TO THIS VAN
Not relevant – custom van built to the requirements of the customers
PRICE AS SHOWN $ 157,870
