RV PROFILE

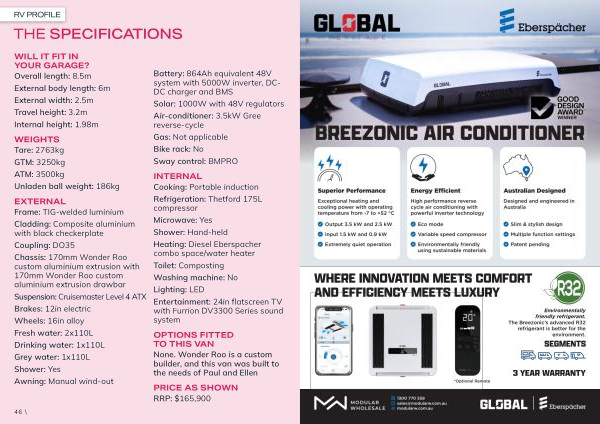

THE SPECIFICATIONS
WILL IT FIT IN YOUR GARAGE?
Overall length: 8.5m External body length: 6m External width: 2.5m Travel height: 3.2m Internal height: 1.98m
WEIGHTS Tare: 2763kg GTM: 3250kg ATM: 3500kg Unladen ball weight: 186kg
EXTERNAL Frame: TIG-welded luminium
Cladding: Composite aluminium with black checkerplate
Coupling: DO35
Chassis: 170mm Wonder Roo custom aluminium extrusion with 170mm Wonder Roo custom aluminium extrusion drawbar
Suspension: Cruisemaster Level 4 ATX Brakes: 12in electric Wheels: 16in alloy Fresh water: 2x110L Drinking water: 1x110L Grey water: 1x110L Shower: Yes Awning: Manual wind-out
Battery: 864Ah equivalent 48V system with 5000W inverter, DC- DC charger and BMS
Solar: 1000W with 48V regulators
Air-conditioner: 3.5kW Gree reverse-cycle
Gas: Not applicable Bike rack: No Sway control: BMPRO
INTERNAL Cooking: Portable induction
Refrigeration: Thetford 175L compressor
Microwave: Yes Shower: Hand-held
Heating: Diesel Eberspacher combo space / water heater
Toilet: Composting Washing machine: No Lighting: LED
Entertainment: 24in flatscreen TV with Furrion DV3300 Series sound system
OPTIONS FITTED TO THIS VAN
None. Wonder Roo is a custom builder, and this van was built to the needs of Paul and Ellen
PRICE AS SHOWN RRP: $ 165,900
