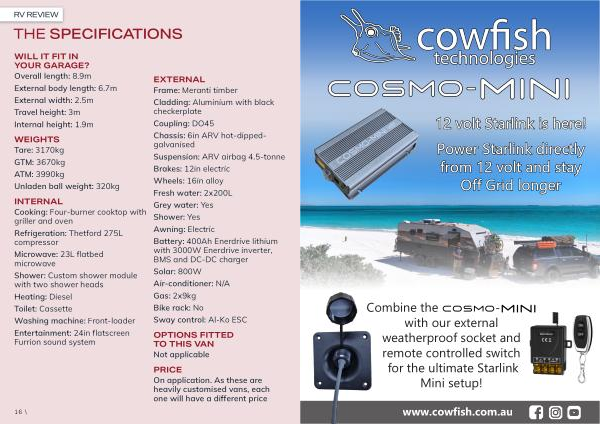

RV REVIEW
THE SPECIFICATIONS
WILL IT FIT IN YOUR GARAGE?
Overall length: 8.9m External body length: 6.7m External width: 2.5m Travel height: 3m Internal height: 1.9m
WEIGHTS Tare: 3170kg GTM: 3670kg ATM: 3990kg Unladen ball weight: 320kg
INTERNAL
Cooking: Four-burner cooktop with griller and oven
Refrigeration: Thetford 275L compressor
Microwave: 23L flatbed microwave
Shower: Custom shower module with two shower heads
Heating: Diesel Toilet: Cassette Washing machine: Front-loader
Entertainment: 24in flatscreen Furrion sound system
EXTERNAL Frame: Meranti timber
Cladding: Aluminium with black checkerplate
Coupling: DO45
Chassis: 6in ARV hot-dippedgalvanised
Suspension: ARV airbag 4.5-tonne Brakes: 12in electric Wheels: 16in alloy Fresh water: 2x200L Grey water: Yes Shower: Yes Awning: Electric
Battery: 400Ah Enerdrive lithium with 3000W Enerdrive inverter, BMS and DC-DC charger
Solar: 800W Air-conditioner: N / A Gas: 2x9kg Bike rack: No Sway control: Al-Ko ESC
OPTIONS FITTED TO THIS VAN
Not applicable
PRICE
On application. As these are heavily customised vans, each one will have a different price
