RV REVIEW

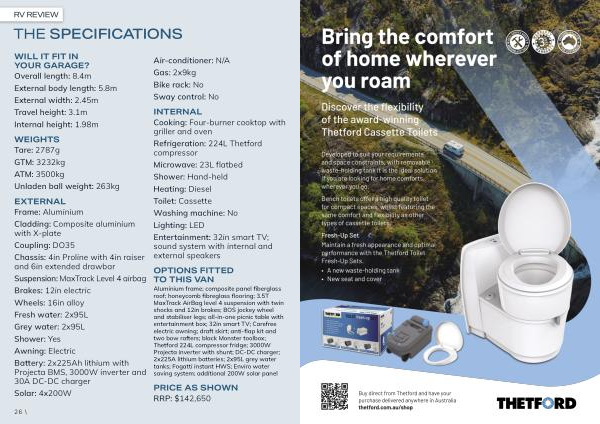

THE SPECIFICATIONS
WILL IT FIT IN YOUR GARAGE?
Overall length: 8.4m External body length: 5.8m External width: 2.45m Travel height: 3.1m Internal height: 1.98m
WEIGHTS Tare: 2787g GTM: 3232kg ATM: 3500kg Unladen ball weight: 263kg
EXTERNAL Frame: Aluminium
Cladding: Composite aluminium with X-plate
Coupling: DO35
Chassis: 4in Proline with 4in raiser and 6in extended drawbar
Suspension: MaxTrack Level 4 airbag Brakes: 12in electric Wheels: 16in alloy Fresh water: 2x95L Grey water: 2x95L Shower: Yes Awning: Electric
Battery: 2x225Ah lithium with Projecta BMS, 3000W inverter and 30A DC-DC charger
Solar: 4x200W
Air-conditioner: N / A Gas: 2x9kg Bike rack: No Sway control: No
INTERNAL
Cooking: Four-burner cooktop with griller and oven
Refrigeration: 224L Thetford compressor
Microwave: 23L flatbed Shower: Hand-held Heating: Diesel Toilet: Cassette
26 \
Washing machine: No Lighting: LED
Entertainment: 32in smart TV; sound system with internal and external speakers
OPTIONS FITTED TO THIS VAN
Aluminium frame; composite panel fiberglass roof; honeycomb fibreglass flooring; 3.5T MaxTrack AirBag level 4 suspension with twin shocks and 12in brakes; BOS jockey wheel and stabiliser legs; all-in-one picnic table with entertainment box; 32in smart TV; Carefree electric awning; draft skirt; anti-flap kit and two bow rafters; black Monster toolbox; Thetford 224L compressor fridge; 3000W Projecta inverter with shunt; DC-DC charger; 2x225A lithium batteries; 2x95L grey water tanks; Fogatti instant HWS; Enviro water saving system; additional 200W solar panel
PRICE AS SHOWN RRP: $ 142,650
