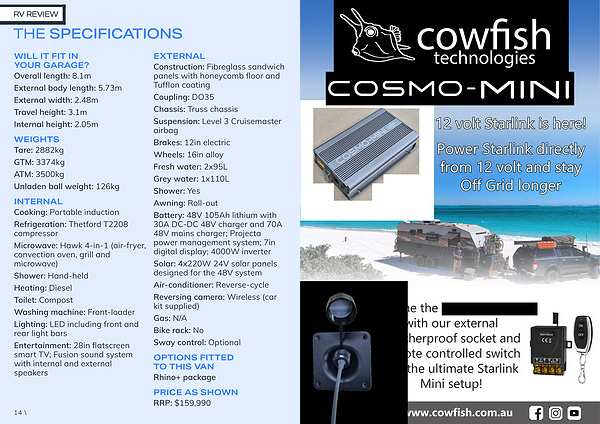

RV REVIEW
THE SPECIFICATIONS
WILL IT FIT IN YOUR GARAGE?
Overall length: 8.1m External body length: 5.73m External width: 2.48m Travel height: 3.1m Internal height: 2.05m
WEIGHTS Tare: 2882kg GTM: 3374kg ATM: 3500kg Unladen ball weight: 126kg
INTERNAL Cooking: Portable induction
Refrigeration: Thetford T2208 compressor
Microwave: Hawk 4-in-1( air-fryer, convection oven, grill and microwave)
Shower: Hand-held Heating: Diesel Toilet: Compost Washing machine: Front-loader
Lighting: LED including front and rear light bars
Entertainment: 28in flatscreen smart TV; Fusion sound system with internal and external speakers
14 \
EXTERNAL
Construction: Fibreglass sandwich panels with honeycomb floor and Tufflon coating
Coupling: DO35 Chassis: Truss chassis
Suspension: Level 3 Cruisemaster airbag
Brakes: 12in electric Wheels: 16in alloy Fresh water: 2x95L Grey water: 1x110L Shower: Yes Awning: Roll-out
Battery: 48V 105Ah lithium with 30A DC-DC 48V charger and 70A 48V mains charger; Projecta power management system; 7in digital display; 4000W inverter
Solar: 4x220W 24V solar panels designed for the 48V system
Air-conditioner: Reverse-cycle
Reversing camera: Wireless( car kit supplied)
Gas: N / A Bike rack: No Sway control: Optional
OPTIONS FITTED TO THIS VAN
Rhino + package
PRICE AS SHOWN RRP: $ 159,990
