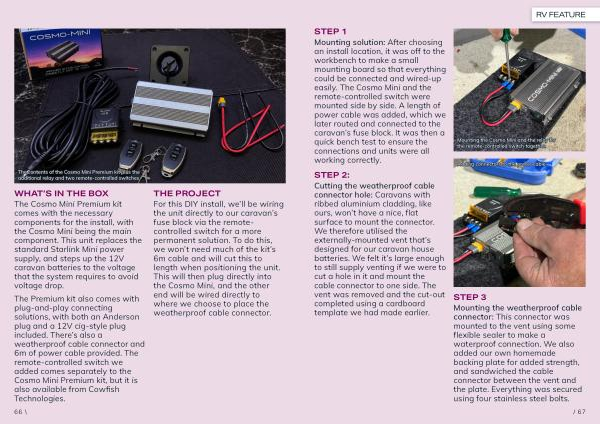

The contents of the Cosmo Mini Premium kit plus the additional relay and two remote-controlled switches.
WHAT’ S IN THE BOX
The Cosmo Mini Premium kit comes with the necessary components for the install, with the Cosmo Mini being the main component. This unit replaces the standard Starlink Mini power supply, and steps up the 12V caravan batteries to the voltage that the system requires to avoid voltage drop.
The Premium kit also comes with plug-and-play connecting solutions, with both an Anderson plug and a 12V cig-style plug included. There’ s also a weatherproof cable connector and 6m of power cable provided. The remote-controlled switch we added comes separately to the Cosmo Mini Premium kit, but it is also available from Cowfish Technologies.
THE PROJECT
For this DIY install, we’ ll be wiring the unit directly to our caravan’ s fuse block via the remotecontrolled switch for a more permanent solution. To do this, we won’ t need much of the kit’ s 6m cable and will cut this to length when positioning the unit. This will then plug directly into the Cosmo Mini, and the other end will be wired directly to where we choose to place the weatherproof cable connector.
