RV PROFILE

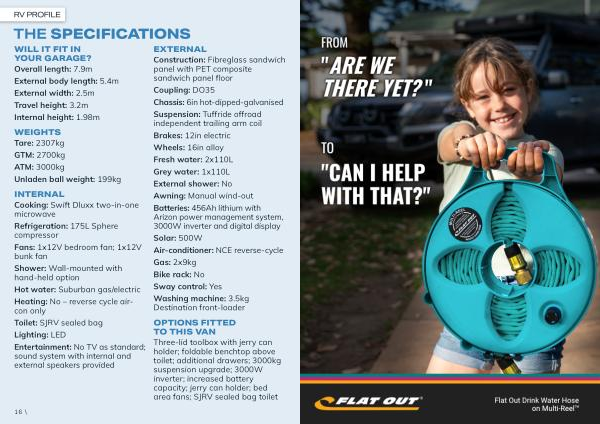

THE SPECIFICATIONS
WILL IT FIT IN YOUR GARAGE?
Overall length: 7.9m External body length: 5.4m External width: 2.5m Travel height: 3.2m Internal height: 1.98m
WEIGHTS Tare: 2307kg GTM: 2700kg ATM: 3000kg Unladen ball weight: 199kg
INTERNAL
Cooking: Swift Dluxx two-in-one microwave
Refrigeration: 175L Sphere compressor
Fans: 1x12V bedroom fan; 1x12V bunk fan
Shower: Wall-mounted with hand-held option
Hot water: Suburban gas / electric
Heating: No – reverse cycle aircon only
Toilet: SJRV sealed bag Lighting: LED
Entertainment: No TV as standard; sound system with internal and external speakers provided
16 \
EXTERNAL
Construction: Fibreglass sandwich panel with PET composite sandwich panel floor
Coupling: DO35 Chassis: 6in hot-dipped-galvanised
Suspension: Tuffride offroad independent trailing arm coil
Brakes: 12in electric Wheels: 16in alloy Fresh water: 2x110L Grey water: 1x110L External shower: No Awning: Manual wind-out
Batteries: 456Ah lithium with Arizon power management system, 3000W inverter and digital display
Solar: 500W Air-conditioner: NCE reverse-cycle Gas: 2x9kg Bike rack: No Sway control: Yes
Washing machine: 3.5kg Destination front-loader
OPTIONS FITTED TO THIS VAN
Three-lid toolbox with jerry can holder; foldable benchtop above toilet; additional drawers; 3000kg suspension upgrade; 3000W inverter; increased battery capacity; jerry can holder; bed area fans; SJRV sealed bag toilet
