RV PROFILE

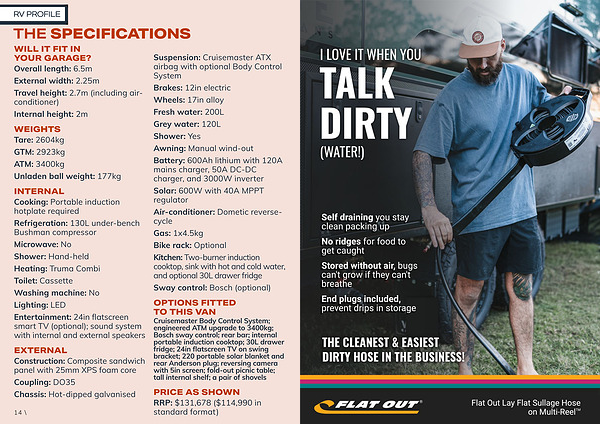

THE SPECIFICATIONS
WILL IT FIT IN YOUR GARAGE?
Overall length: 6.5m External width: 2.25m
Travel height: 2.7m( including airconditioner)
Internal height: 2m
WEIGHTS Tare: 2604kg GTM: 2923kg ATM: 3400kg Unladen ball weight: 177kg
INTERNAL
Cooking: Portable induction hotplate required
Refrigeration: 130L under-bench Bushman compressor
Microwave: No Shower: Hand-held Heating: Truma Combi Toilet: Cassette Washing machine: No Lighting: LED
Entertainment: 24in flatscreen smart TV( optional); sound system with internal and external speakers
EXTERNAL
Construction: Composite sandwich panel with 25mm XPS foam core
Coupling: DO35
Chassis: Hot-dipped galvanised
14 \
Suspension: Cruisemaster ATX airbag with optional Body Control System
Brakes: 12in electric Wheels: 17in alloy Fresh water: 200L Grey water: 120L Shower: Yes Awning: Manual wind-out
Battery: 600Ah lithium with 120A mains charger, 50A DC-DC charger, and 3000W inverter
Solar: 600W with 40A MPPT regulator
Air-conditioner: Dometic reversecycle
Gas: 1x4.5kg Bike rack: Optional
Kitchen: Two-burner induction cooktop, sink with hot and cold water, and optional 30L drawer fridge
Sway control: Bosch( optional)
OPTIONS FITTED TO THIS VAN
Cruisemaster Body Control System; engineered ATM upgrade to 3400kg; Bosch sway control; rear bar; internal portable induction cooktop; 30L drawer fridge; 24in flatscreen TV on swing bracket; 220 portable solar blanket and rear Anderson plug; reversing camera with 5in screen; fold-out picnic table; tall internal shelf; a pair of shovels
PRICE AS SHOWN
RRP: $ 131,678($ 114,990 in standard format)
