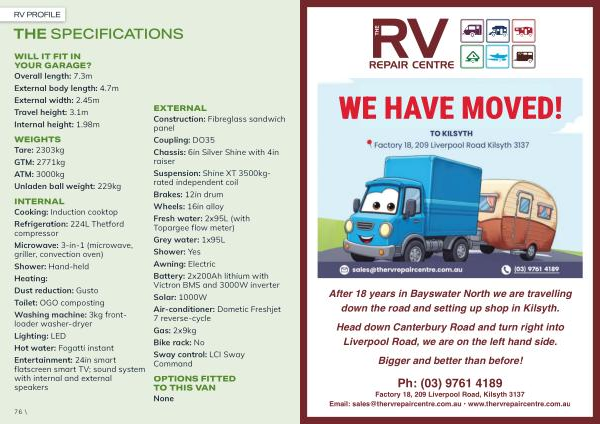

RV PROFILE
THE SPECIFICATIONS
WILL IT FIT IN YOUR GARAGE?
Overall length: 7.3m External body length: 4.7m External width: 2.45m Travel height: 3.1m Internal height: 1.98m
WEIGHTS Tare: 2303kg GTM: 2771kg ATM: 3000kg Unladen ball weight: 229kg
INTERNAL Cooking: Induction cooktop
Refrigeration: 224L Thetford compressor
Microwave: 3-in-1( microwave, griller, convection oven)
Shower: Hand-held Heating: Dust reduction: Gusto Toilet: OGO composting
Washing machine: 3kg frontloader washer-dryer
Lighting: LED Hot water: Fogatti instant
Entertainment: 24in smart flatscreen smart TV; sound system with internal and external speakers
EXTERNAL
Construction: Fibreglass sandwich panel
Coupling: DO35
Chassis: 6in Silver Shine with 4in raiser
Suspension: Shine XT 3500kgrated independent coil
Brakes: 12in drum Wheels: 16in alloy
Fresh water: 2x95L( with Topargee flow meter)
Grey water: 1x95L Shower: Yes Awning: Electric
Battery: 2x200Ah lithium with Victron BMS and 3000W inverter
Solar: 1000W
Air-conditioner: Dometic Freshjet 7 reverse-cycle
Gas: 2x9kg Bike rack: No
Sway control: LCI Sway Command
OPTIONS FITTED TO THIS VAN
None
