RV REVIEW

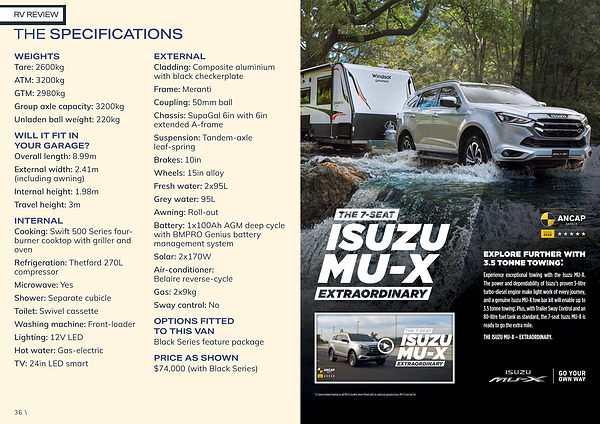

THE SPECIFICATIONS
WEIGHTS Tare : 2600kg ATM : 3200kg GTM : 2980kg Group axle capacity : 3200kg Unladen ball weight : 220kg
WILL IT FIT IN YOUR GARAGE ? Overall length : 8.99m
External width : 2.41m ( including awning )
Internal height : 1.98m Travel height : 3m
INTERNAL
Cooking : Swift 500 Series fourburner cooktop with griller and oven
Refrigeration : Thetford 270L compressor
Microwave : Yes Shower : Separate cubicle Toilet : Swivel cassette Washing machine : Front-loader Lighting : 12V LED Hot water : Gas-electric TV : 24in LED smart
EXTERNAL
Cladding : Composite aluminium with black checkerplate
Frame : Meranti Coupling : 50mm ball
Chassis : SupaGal 6in with 6in extended A-frame
Suspension : Tandem-axle leaf-spring
Brakes : 10in Wheels : 15in alloy Fresh water : 2x95L Grey water : 95L Awning : Roll-out
Battery : 1x100Ah AGM deep cycle with BMPRO Genius battery management system
Solar : 2x170W
Air-conditioner : Belaire reverse-cycle
Gas : 2x9kg Sway control : No
OPTIONS FITTED TO THIS VAN Black Series feature package
PRICE AS SHOWN $ 74,000 ( with Black Series )
