RV REVIEW

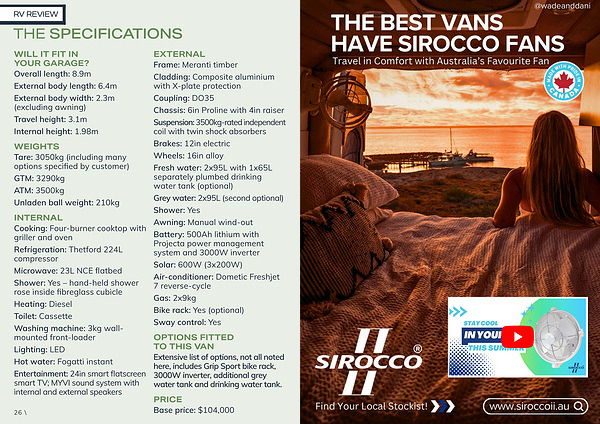

THE SPECIFICATIONS
WILL IT FIT IN YOUR GARAGE ?
Overall length : 8.9m External body length : 6.4m
External body width : 2.3m ( excluding awning )
Travel height : 3.1m Internal height : 1.98m
WEIGHTS
Tare : 3050kg ( including many options specified by customer )
GTM : 3290kg ATM : 3500kg Unladen ball weight : 210kg
INTERNAL
Cooking : Four-burner cooktop with griller and oven
Refrigeration : Thetford 224L compressor
Microwave : 23L NCE flatbed
Shower : Yes – hand-held shower rose inside fibreglass cubicle
Heating : Diesel Toilet : Cassette
Washing machine : 3kg wallmounted front-loader
Lighting : LED Hot water : Fogatti instant
Entertainment : 24in smart flatscreen smart TV ; MYVI sound system with internal and external speakers
26 \
EXTERNAL Frame : Meranti timber
Cladding : Composite aluminium with X-plate protection
Coupling : DO35 Chassis : 6in Proline with 4in raiser
Suspension : 3500kg-rated independent coil with twin shock absorbers
Brakes : 12in electric Wheels : 16in alloy
Fresh water : 2x95L with 1x65L separately plumbed drinking water tank ( optional )
Grey water : 2x95L ( second optional ) Shower : Yes Awning : Manual wind-out
Battery : 500Ah lithium with Projecta power management system and 3000W inverter
Solar : 600W ( 3x200W )
Air-conditioner : Dometic Freshjet 7 reverse-cycle
Gas : 2x9kg Bike rack : Yes ( optional ) Sway control : Yes
OPTIONS FITTED TO THIS VAN
Extensive list of options , not all noted here , includes Grip Sport bike rack , 3000W inverter , additional grey water tank and drinking water tank .
PRICE Base price : $ 104,000
