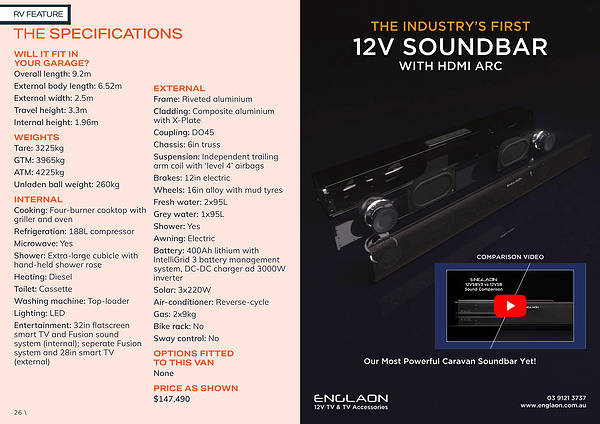

RV FEATURE
THE SPECIFICATIONS
WILL IT FIT IN YOUR GARAGE?
Overall length: 9.2m External body length: 6.52m External width: 2.5m Travel height: 3.3m Internal height: 1.96m
WEIGHTS Tare: 3225kg GTM: 3965kg ATM: 4225kg Unladen ball weight: 260kg
INTERNAL
Cooking: Four-burner cooktop with griller and oven
Refrigeration: 188L compressor Microwave: Yes
Shower: Extra-large cubicle with hand-held shower rose
Heating: Diesel Toilet: Cassette Washing machine: Top-loader Lighting: LED
Entertainment: 32in flatscreen smart TV and Fusion sound system( internal); seperate Fusion system and 28in smart TV( external)
EXTERNAL Frame: Riveted aluminium
Cladding: Composite aluminium with X-Plate
Coupling: DO45 Chassis: 6in truss
Suspension: Independent trailing arm coil with‘ level 4’ airbags
Brakes: 12in electric Wheels: 16in alloy with mud tyres Fresh water: 2x95L Grey water: 1x95L Shower: Yes Awning: Electric
Battery: 400Ah lithium with IntelliGrid 3 battery management system, DC-DC charger ad 3000W inverter
Solar: 3x220W Air-conditioner: Reverse-cycle Gas: 2x9kg Bike rack: No Sway control: No
OPTIONS FITTED TO THIS VAN
None
PRICE AS SHOWN $ 147,490
