RV FEATURE

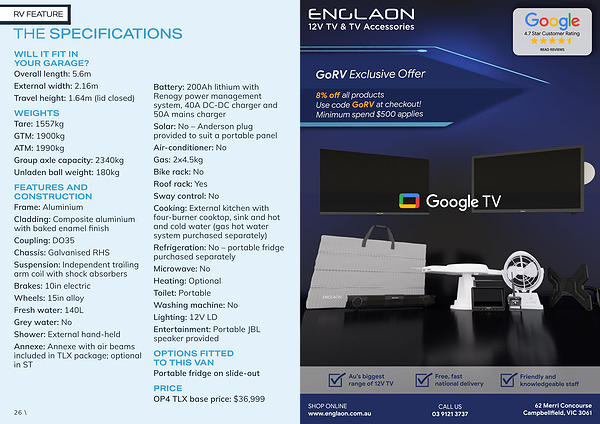

THE SPECIFICATIONS
WILL IT FIT IN YOUR GARAGE?
Overall length: 5.6m External width: 2.16m Travel height: 1.64m( lid closed)
WEIGHTS Tare: 1557kg GTM: 1900kg ATM: 1990kg Group axle capacity: 2340kg Unladen ball weight: 180kg
FEATURES AND CONSTRUCTION
Frame: Aluminium
Cladding: Composite aluminium with baked enamel finish
Coupling: DO35 Chassis: Galvanised RHS
Suspension: Independent trailing arm coil with shock absorbers
Brakes: 10in electric Wheels: 15in alloy Fresh water: 140L Grey water: No Shower: External hand-held
Annexe: Annexe with air beams included in TLX package; optional in ST
Battery: 200Ah lithium with Renogy power management system, 40A DC-DC charger and 50A mains charger
Solar: No – Anderson plug provided to suit a portable panel
Air-conditioner: No Gas: 2x4.5kg Bike rack: No Roof rack: Yes Sway control: No
Cooking: External kitchen with four-burner cooktop, sink and hot and cold water( gas hot water system purchased separately)
Refrigeration: No – portable fridge purchased separately
Microwave: No Heating: Optional Toilet: Portable Washing machine: No Lighting: 12V LD
Entertainment: Portable JBL speaker provided
OPTIONS FITTED TO THIS VAN
Portable fridge on slide-out
PRICE OP4 TLX base price: $ 36,999
