RV REVIEW

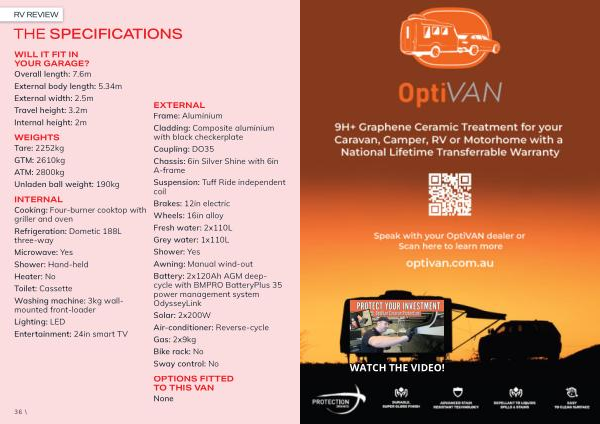

THE SPECIFICATIONS
WILL IT FIT IN YOUR GARAGE?
Overall length: 7.6m External body length: 5.34m External width: 2.5m Travel height: 3.2m Internal height: 2m
WEIGHTS Tare: 2252kg GTM: 2610kg ATM: 2800kg Unladen ball weight: 190kg
INTERNAL
Cooking: Four-burner cooktop with griller and oven
Refrigeration: Dometic 188L three-way
Microwave: Yes Shower: Hand-held Heater: No Toilet: Cassette
Washing machine: 3kg wallmounted front-loader
Lighting: LED Entertainment: 24in smart TV
EXTERNAL Frame: Aluminium
Cladding: Composite aluminium with black checkerplate
Coupling: DO35
Chassis: 6in Silver Shine with 6in A-frame
Suspension: Tuff Ride independent coil
Brakes: 12in electric Wheels: 16in alloy Fresh water: 2x110L Grey water: 1x110L Shower: Yes Awning: Manual wind-out
Battery: 2x120Ah AGM deepcycle with BMPRO BatteryPlus 35 power management system OdysseyLink
Solar: 2x200W Air-conditioner: Reverse-cycle Gas: 2x9kg Bike rack: No Sway control: No
OPTIONS FITTED TO THIS VAN
None
