RV FEATURE

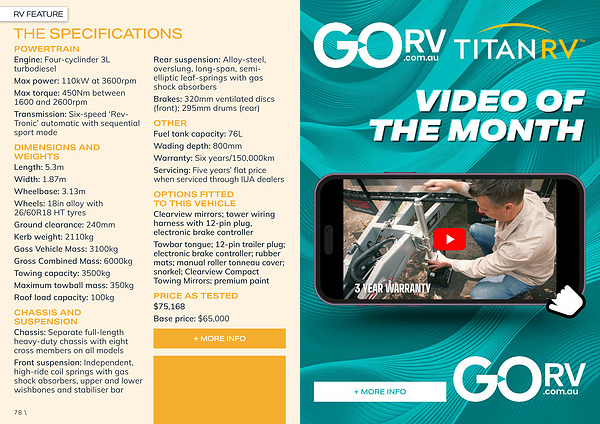

THE SPECIFICATIONS
POWERTRAIN
Engine : Four-cyclinder 3L turbodiesel
Max power : 110kW at 3600rpm
Max torque : 450Nm between 1600 and 2600rpm
Transmission : Six-speed ‘ Rev- Tronic ’ automatic with sequential sport mode
DIMENSIONS AND WEIGHTS
Length : 5.3m Width : 1.87m Wheelbase : 3.13m
Wheels : 18in alloy with 26 / 60R18 HT tyres
Ground clearance : 240mm Kerb weight : 2110kg
Rear suspension : Alloy-steel , overslung , long-span , semielliptic leaf-springs with gas shock absorbers
Brakes : 320mm ventilated discs ( front ); 295mm drums ( rear )
OTHER Fuel tank capacity : 76L Wading depth : 800mm Warranty : Six years / 150,000km
Servicing : Five years ’ flat price when serviced through IUA dealers
OPTIONS FITTED TO THIS VEHICLE
Clearview mirrors ; tower wiring harness with 12-pin plug , electronic brake controller Goss Vehicle Mass : 3100kg Gross Combined Mass : 6000kg Towing capacity : 3500kg Maximum towball mass : 350kg Roof load capacity : 100kg
CHASSIS AND SUSPENSION
Chassis : Separate full-length heavy-duty chassis with eight cross members on all models
Front suspension : Independent , high-ride coil springs with gas shock absorbers , upper and lower wishbones and stabiliser bar
Towbar tongue ; 12-pin trailer plug ; electronic brake controller ; rubber mats ; manual roller tonneau cover ; snorkel ; Clearview Compact Towing Mirrors ; premium paint
PRICE AS TESTED $ 75,168 Base price : $ 65,000
